| उत्पत्ति के प्लेस: | झेजियांग, चीन |
|---|---|
| ब्रांड नाम: | Factory or OEM / ODM |
| प्रमाणन: | CE, ROHS, REACH, IP68 |
| मॉडल संख्या: | टीएससीजी श्रृंखला |
| न्यूनतम आदेश मात्रा: | 500 टुकड़े |
| मूल्य: | factory direct sale |
| पैकेजिंग विवरण: | प्रति बैग 100 टुकड़े (अनुरोध पर विशेष पैकिंग भी उपलब्ध हैं) |
| प्रसव के समय: | सामान्यतः 10-14 दिन |
| भुगतान शर्तें: | टी/टी, एल/सी, वेस्टर्न यूनियन |
| आपूर्ति की क्षमता: | 50,000 टुकड़े/माह |
| सामग्री: | स्टेनलेस स्टील Inox 304/316/316L | सतह: | पॉलिशिंग उपचार |
|---|---|---|---|
| रंग: | सिल्वर ग्रे | प्लास्टिक आवेषण: | यूएल-पॉलियामाइड (नायलॉन) 6 |
| ज्वलनशीलता: | UL94 के अनुसार V-2 रेटिंग | मुहर: | एफकेएम/एफपीएम (एफएफकेएम/एफएफपीएम) रबर |
| O-अंगूठी: | एफकेएम/एफपीएम (एफएफकेएम/एफएफपीएम) रबर | सुरक्षा: | IP68 रेटेड |
| चश्मा: | एम16x1.5 (5-10मिमी) | विशेषताएँ:: | जलरोधक, एसिड और तेल प्रतिरोधी, पुलआउट प्रतिरोध, यूवी प्रतिरोधी, एंटी-एजिंग, टिकाऊ, अच्छा प्रदर्शन, ल |
| समारोह: | पुल-आउट और स्ट्रॉन स्ट्रेन राहत के लिए अतिरिक्त प्रतिरोध प्रदान करें |

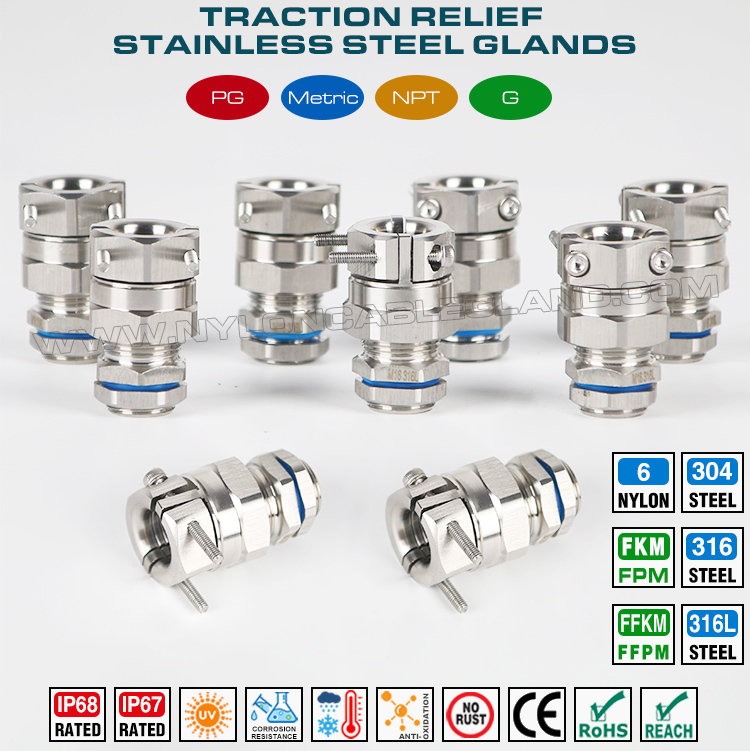

Main features:
♦ Saddle clamp: a distinct U-shaped or two-part clamp that fastens around the cable, providing extra mechanical grip and strain relief, essentially "saddling" the cable for maximum security.
♦ Traction relief (strain relief, pull relief): the main purpose is to grip the cable firmly, preventing tension or pulling from damaging internal wires or disconnecting the cables.
♦ Sealing: creates a tight seal (IP68) to prevent dust, water, oil, and other contaminants from entering the enclosure.

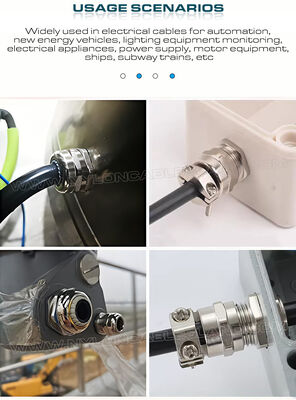

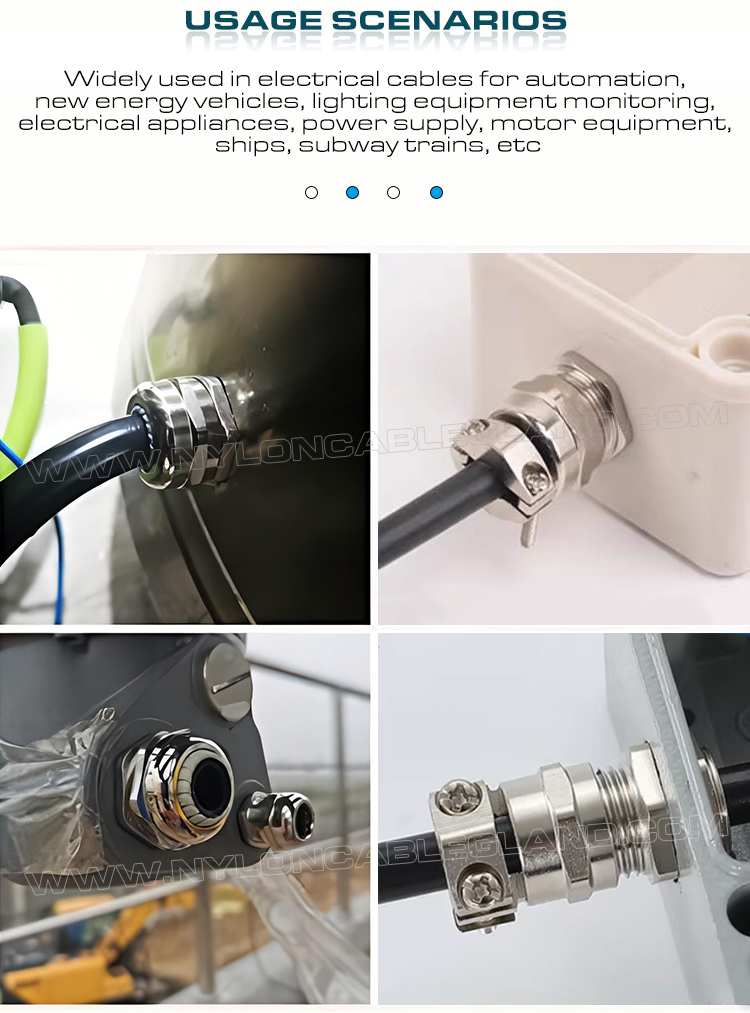

♦ Harsh environments: ideal for building sites, portable equipment, machinery, and electrical motors where vibration, impact, or rough handling is common.
♦ Mechanical security: secures the cable to the equipment or panel, providing a robust mechanical connection.
Information:
| Brand name: | Factory or OEM / ODM |
| Place of origin: | Zhejiang, China |
| Specification: | M16x1.5 (clamping range: 5-10mm) |

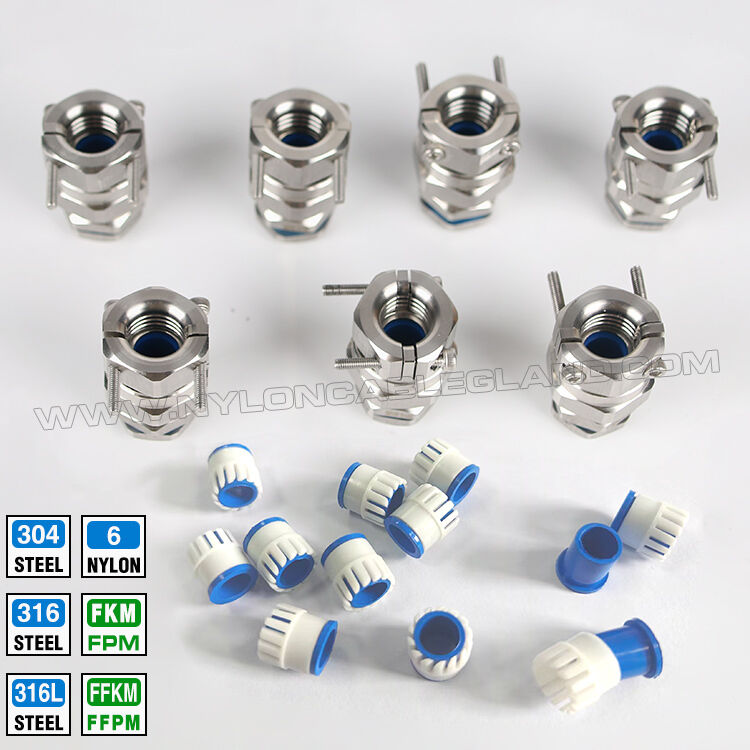

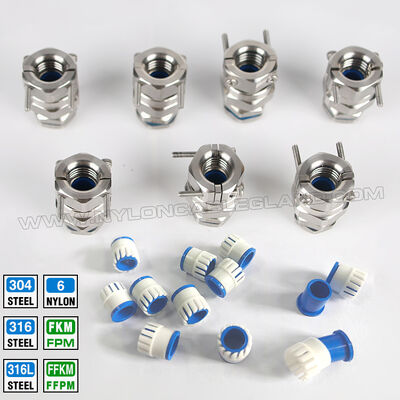

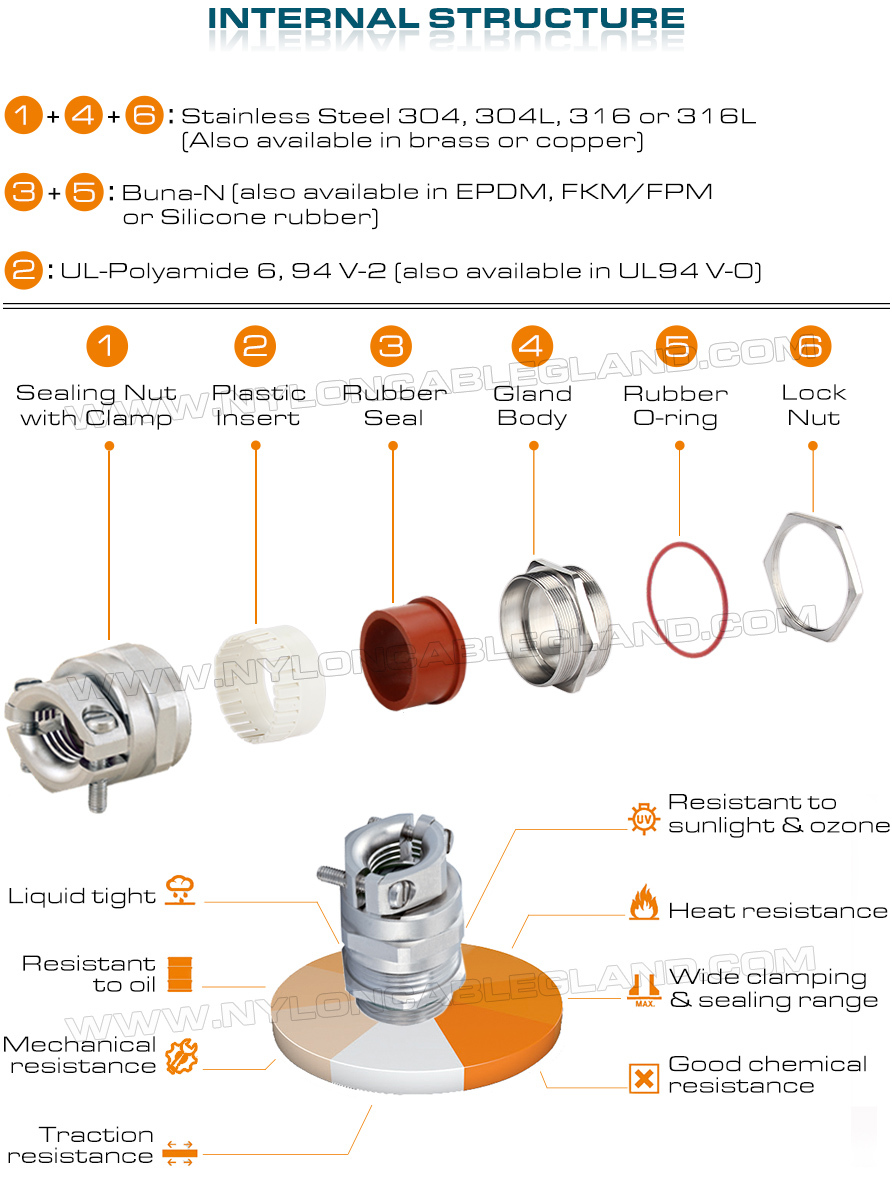

| Materials: | Stainless steel type 304, 316 or 316L for locknut, sealing nut and gland body |
| UL-polyamide 6, 94V-2 for plastic insert | |
| FKM / FPM (FFKM / FFPM) rubber for seals & O-rings | |
| Color: | Silver gray |
| Advantages: | Exquisite workmanship and beautiful good-looks, unique design of sealing nut and seals can provide high strain relief and protect cable against pull-out. Resistant to salt water, weak acid, alcohol, oil, grease and common solvency |
| Certifications: | CE, ROHS, REACH, IP68 |
| Protection: | IP68 (when the cable diameter is within the clamping range and assemble the O-ring) |
| Thread length: | Short thread or long thread, both are available |
| Operation temp.: | Static: -40℃ to 100℃, short-term:120℃. Dynamic: -20℃ to 80℃, short-term:100 ℃ |
| OEM service: | Yes, available |
| Supply capability: | 50,000 pieces per month |
| Minimum quantity: | 500 pieces |
| Samples available: | Yes, available |
| Delivery time: | Normally 10-14 days after confirmation of orders |
| Payment terms: | T/T in advance, Western Union, L/C at sight |
| Shipment terms: | EMS / TNT / DHL / UPS / FEDEX or FOB, CIF, C&F by sea or by air |
| Export packing: | 100 pieces / bag, 50 pieces / color box, special packing can be customized as requested |
